LTC1063CN8#PBF - Analog Devices

Description: LTC1063CN8#PBF, Active Filter, Low Pass Filter, 5th Order Switched Capacitor 50kHz, 8-Pin PDIP N

Download LTC1063CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

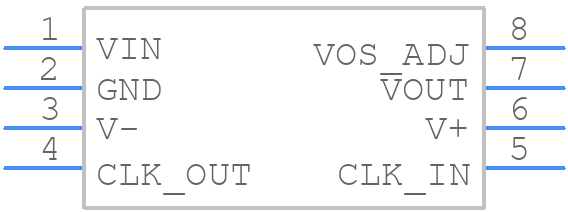

Symbol
LTC1063CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1063CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 Package 8-Lead PDIP
click to zoom
3D Models
LTC1063CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N8 Package 8-Lead PDIP
click to zoom

LTC1063CN8#PBF Details

  • Manufacturer Part Number:

    LTC1063CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    50 kHz

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.375 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BUTTERWORTH

  • Width:

    7.62 mm

LTC1063CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1063CN8 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, a small series resistor (e.g., 10Ω) can be added to the output to improve stability.
  • The maximum power dissipation of the LTC1063CN8 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated to 0.7W at 70°C ambient temperature.
  • While the LTC1063CN8 is a voltage-controlled oscillator, it can be used as a voltage regulator in certain applications. However, it's essential to note that the device is not designed for high-current output and may not be suitable for all voltage regulator applications. Consult the datasheet and application notes for more information.
  • To troubleshoot issues with the LTC1063CN8, start by verifying the power supply voltage, input signal, and output load. Check for proper PCB layout, component values, and soldering. Use an oscilloscope to inspect the input and output waveforms. Consult the datasheet, application notes, and Analog Devices' support resources for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1063CN8#PBF Overview

Use the download button to access the LTC1063CN8#PBF schematic symbol, PCB footprint, and 3D model.
