LTC1064-2CN#PBF - Analog Devices

Description: LTC1064-2CN#PBF, Active Filter, Low Pass Filter, 8th Order 140kHz, 14-Pin PDIP N

Download LTC1064-2CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

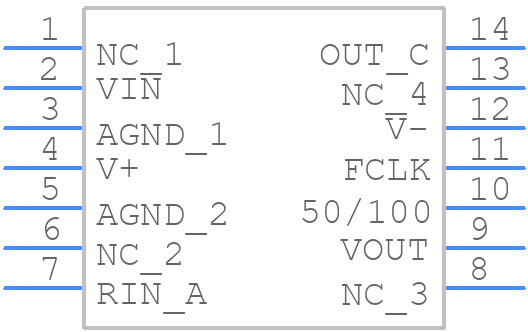

LTC1064-2CN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

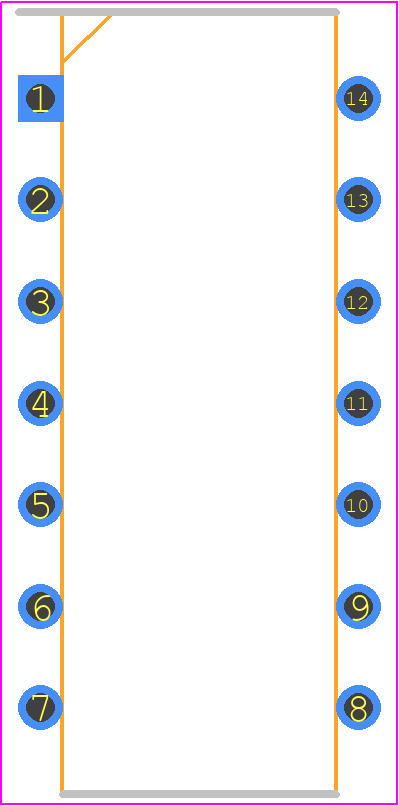

LTC1064-2CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N14
click to zoom
3D Models
LTC1064-2CN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N14
click to zoom

LTC1064-2CN#PBF Details

  • Manufacturer Part Number:

    LTC1064-2CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1510 (N14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A +/-7.5V NOMINAL SUPPLY

  • Center or Cutoff Freq Rng-Max:

    140 kHz

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.37 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Poles and Zeros:

    8 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.37 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Transfer Characteristics:

    BUTTERWORTH

  • Width:

    7.62 mm

LTC1064-2CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1064-2CN#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and noise.
  • The values of the external resistors and capacitors depend on the desired filter characteristics, such as cutoff frequency, gain, and impedance. Analog Devices provides a filter design tool that can help engineers calculate the optimal values for their specific application.
  • The maximum power dissipation of the LTC1064-2CN#PBF is 1.4W. To ensure it doesn't overheat, engineers should provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device. They should also follow proper PCB design and layout guidelines to minimize thermal resistance.
  • Yes, the LTC1064-2CN#PBF can be used in a single-supply application by biasing the input and output signals around a reference voltage, such as VCC/2. This requires additional circuitry, such as a voltage divider and decoupling capacitors, to ensure proper operation.
  • To troubleshoot common issues with the LTC1064-2CN#PBF, engineers should first check the PCB layout and ensure it meets the recommended guidelines. They should also verify the component values and ensure they are correct. If the issue persists, they can use tools such as an oscilloscope to analyze the signal waveforms and identify the root cause of the problem.
