LTC1064-2CSW#PBF - Analog Devices

Description: IC FILTER 140KHZ LOWPASS 16SOIC

Download LTC1064-2CSW#PBF Model

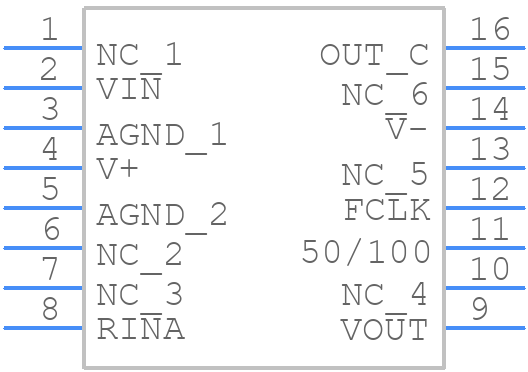

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1064-2CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW(SOP)
click to zoom
3D Models
LTC1064-2CSW#PBF - Analog Devices  - 3D model - Small Outline Packages - SW(SOP)
click to zoom

LTC1064-2CSW#PBF Details

  • Manufacturer Part Number:

    LTC1064-2CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A +/-7.5V NOMINAL SUPPLY

  • Center or Cutoff Freq Rng-Max:

    140 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.37 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    8 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    2.642 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.37 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BUTTERWORTH

  • Width:

    7.5 mm

LTC1064-2CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1064-2CSW involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of external components for the LTC1064-2CSW depends on the specific application requirements. For example, the value of the input and output capacitors depends on the desired filter cutoff frequency and the impedance of the input and output signals. The datasheet provides guidelines for selecting these components, and additional information can be found in the application notes and design notes provided by Analog Devices.
  • The maximum power dissipation of the LTC1064-2CSW is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at an ambient temperature of 25°C. However, this value can be derated at higher temperatures. It's recommended to consult the thermal resistance charts in the datasheet to determine the maximum power dissipation for a specific application.
  • Common issues with the LTC1064-2CSW include oscillations, noise, and distortion. To troubleshoot these issues, it's recommended to check the PCB layout, ensure that the device is properly bypassed, and verify that the input and output signals are within the recommended specifications. Additionally, checking the power supply voltage and ensuring that it's within the recommended range can help to identify and resolve issues.
  • The recommended power-up sequence for the LTC1064-2CSW involves applying the power supply voltage to the device before applying the input signal. This ensures that the device is properly biased and that the internal circuitry is stabilized before the input signal is applied.
