LTC1064-4CSW - Analog Devices

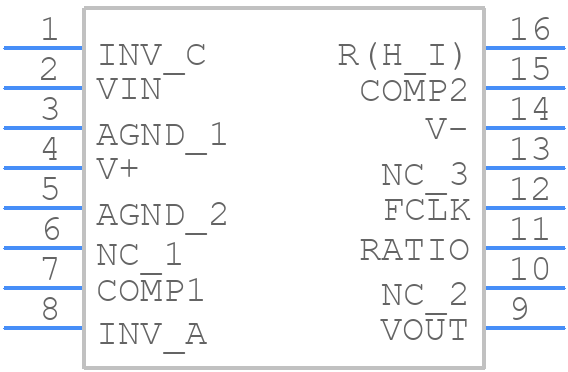

LTC1064-4CSW Details

• Manufacturer Part Number:

  LTC1064-4CSW

• Part Life Cycle Code:

  Obsolete

• Package Description:

  0.300 INCH, PLASTIC, SO-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Active Filter Type:

  SWITCHED CAPACITOR FILTER

• Center or Cutoff Freq Rng-Max:

  100 kHz

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e0

• Length:

  10.2995 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -8 V

• Neg Supply Voltage-Min (Vsup):

  -2.37 V

• Neg Supply Voltage-Nom (Vsup):

  -7.5 V

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Poles and Zeros:

  8 AND 0

• Qualification Status:

  Not Qualified

• Response:

  LOWPASS

• Seated Height-Max:

  2.642 mm

• Supply Voltage-Max (Vsup):

  8 V

• Supply Voltage-Min (Vsup):

  2.37 V

• Supply Voltage-Nom (Vsup):

  7.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Transfer Characteristics:

  BUTTERWORTH/ELLIPTIC

• Width:

  7.5 mm
