LTC1064CN#PBF - Analog Devices

Description: IC FILTER 140KHZ SWITCHED 24DIP

Download LTC1064CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

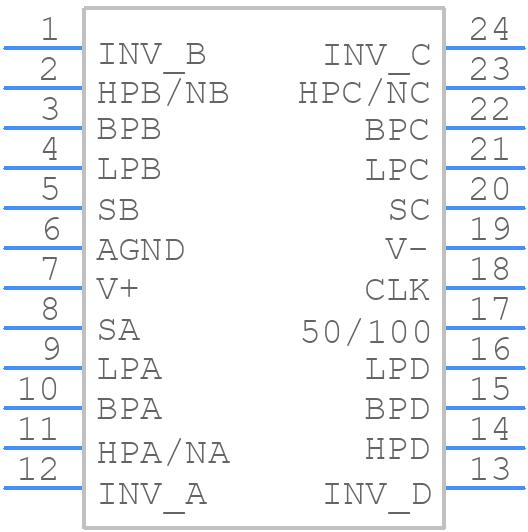

LTC1064CN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

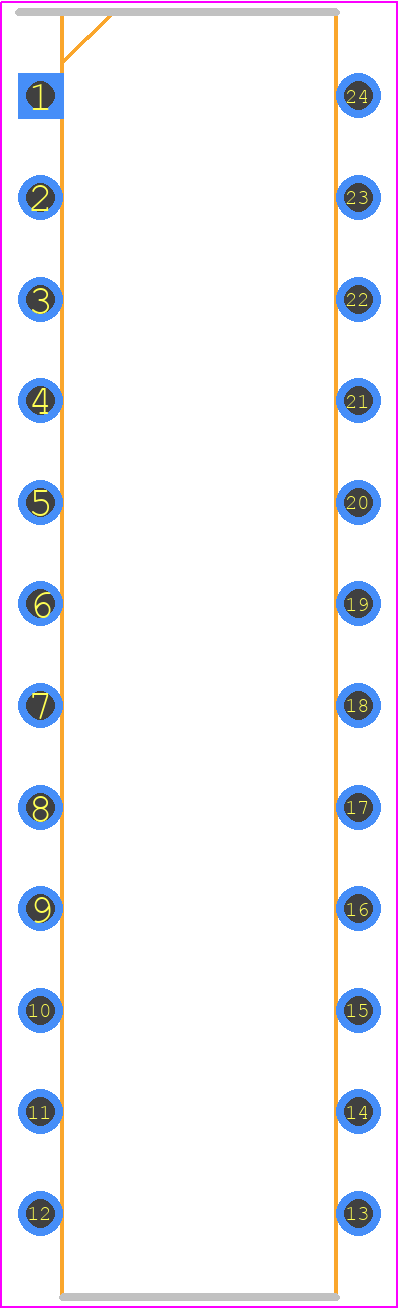

LTC1064CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24-Lead PDIP
click to zoom
3D Models
LTC1064CN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 24-Lead PDIP
click to zoom

LTC1064CN#PBF Details

  • Manufacturer Part Number:

    LTC1064CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1510 (N24)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    140 kHz

  • Center or Cutoff Freq Rng-Min:

    0.0001 kHz

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.37 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    3.81 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.37 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    7.62 mm

LTC1064CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1064CN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the filter components close to the IC. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and well-separated.
  • The values of the external resistors and capacitors depend on the desired cutoff frequency, filter order, and impedance of the signal source and load. Analog Devices provides a Filter Design Tool that can help you calculate the optimal values for your specific application. You can also refer to the datasheet's application notes and design examples for guidance.
  • The maximum power dissipation of the LTC1064CN#PBF is 1.3W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a copper plane or a heat sink, and keep the ambient temperature within the recommended operating range. You can also reduce the power dissipation by using a lower supply voltage or reducing the output current.
  • The LTC1064CN#PBF is rated for operation up to 70°C, but it can be used in high-temperature environments with some limitations. The device's performance and reliability may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. You should also consider the temperature coefficient of the external components and the overall system design.
  • Common issues with the LTC1064CN#PBF can often be traced back to poor PCB layout, incorrect component values, or inadequate power supply decoupling. To troubleshoot, start by checking the PCB layout and component values, then verify the power supply voltage and decoupling. You can also use a scope to measure the output signal and look for signs of oscillation or distortion.
