LTC1064CSW#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1064CSW#PBF - FILTER, QUAD, LOW PASS, 80KHZ, 24SOIC

Download LTC1064CSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

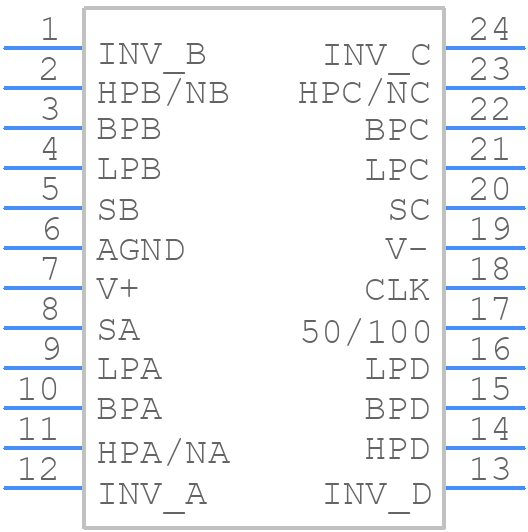

LTC1064CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

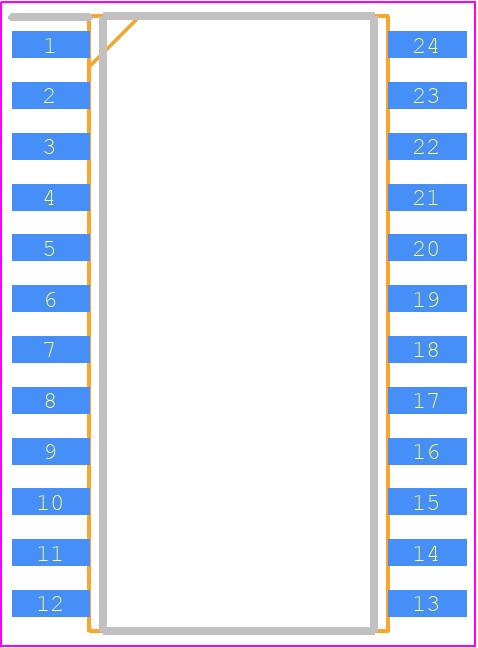

LTC1064CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package 24-Lead Plastic Small Outline (Wide .300 Inch) (Reference LTC DWG # 05-08-1620)
click to zoom
3D Models
LTC1064CSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW Package 24-Lead Plastic Small Outline (Wide .300 Inch) (Reference LTC DWG # 05-08-1620)
click to zoom

LTC1064CSW#PBF Details

  • Manufacturer Part Number:

    LTC1064CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1620 (SW24)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    140 kHz

  • Center or Cutoff Freq Rng-Min:

    0.0001 kHz

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.37 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.37 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    7.5 mm

LTC1064CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1064CSW#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
  • The LTC1064CSW#PBF is specified to operate from -40°C to 85°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use a thermally conductive material for the PCB. Additionally, consider using thermal simulation tools to predict the device's temperature rise.
  • Not using the recommended bypass capacitors for the LTC1064CSW#PBF can lead to reduced noise rejection, increased noise sensitivity, and potential oscillations. This can result in poor performance, instability, or even device failure. It's essential to follow the recommended bypass capacitor values and placement to ensure optimal performance.
  • While the LTC1064CSW#PBF is primarily designed for linear power supply applications, it can be used in switching power supply applications with some precautions. However, it's essential to ensure the device is properly bypassed, and the input and output capacitors are selected to handle the high-frequency switching noise.
  • To troubleshoot issues with the LTC1064CSW#PBF, start by verifying the PCB layout, ensuring proper bypassing, and checking the input and output voltage levels. Use an oscilloscope to observe the device's behavior, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
