LTC1065CN8#PBF - Analog Devices

Description: LTC1065CN8#PBF, Active Filter, Low Pass Filter, 5th Order Switched Capacitor 50kHz, 8-Pin PDIP N

Download LTC1065CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

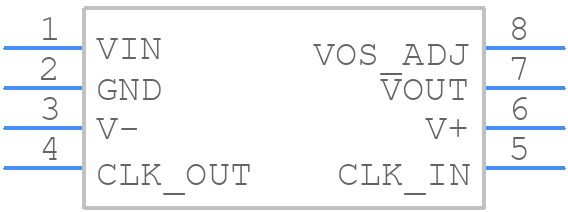

Symbol
LTC1065CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1065CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP_2020
click to zoom
3D Models
LTC1065CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead PDIP_2020
click to zoom

LTC1065CN8#PBF Details

  • Manufacturer Part Number:

    LTC1065CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    50 kHz

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -2.375 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    5 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    3.809 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BESSEL

  • Width:

    7.62 mm

LTC1065CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1065CN8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The values of the external components depend on the specific application and desired filter characteristics. Analog Devices provides a Filter Design Tool that can be used to calculate the component values based on the desired filter response.
  • The maximum power dissipation of the LTC1065CN8 is 1.4W, assuming a maximum junction temperature of 150°C and a thermal resistance of 125°C/W. However, the actual power dissipation will depend on the specific application and operating conditions.
  • The LTC1065CN8 is rated for operation from -40°C to 85°C. While it can tolerate short-term excursions up to 150°C, prolonged operation above 85°C may affect its reliability and lifespan. If high-temperature operation is required, consider using a device with a higher temperature rating.
  • Common issues with the LTC1065CN8 can often be traced to improper PCB layout, incorrect component values, or inadequate power supply decoupling. Check the datasheet for recommended layout and component values, and ensure that the power supply is well-regulated and decoupled.
