LTC1067-50CGN#PBF - Analog Devices

Description: IC FILTR BLDNGBLK R-R DUAL16SSOP

Download LTC1067-50CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

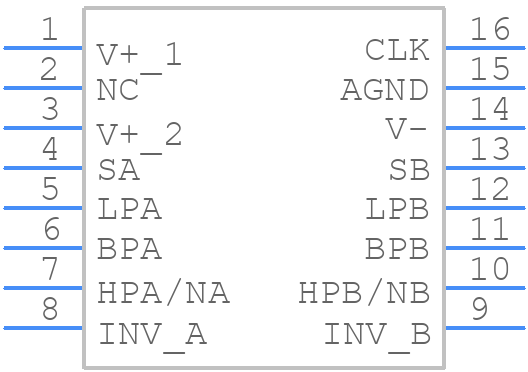

LTC1067-50CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1067-50CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.15
click to zoom
3D Models
LTC1067-50CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.15
click to zoom

LTC1067-50CGN#PBF Details

  • Manufacturer Part Number:

    LTC1067-50CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    40 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    3.9116 mm

LTC1067-50CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1067-50CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the filter components close to the IC. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and well-separated.
  • The values of the external resistors and capacitors depend on the desired cutoff frequency, filter order, and impedance matching requirements. Analog Devices provides a Filter Design Tool that can help you calculate the optimal values for your specific application. You can also refer to the datasheet's application notes and design examples for guidance.
  • The maximum power dissipation of the LTC1067-50CGN#PBF is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the ambient temperature within the recommended operating range. You can also reduce the power dissipation by minimizing the input voltage and current, and by using a lower power supply voltage.
  • The LTC1067-50CGN#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to prevent overheating. Additionally, the device's specifications may vary at high temperatures, so it's essential to consult the datasheet and perform thorough testing before deploying the device in a high-temperature environment.
  • Common issues with the LTC1067-50CGN#PBF can often be attributed to poor PCB layout, inadequate power supply decoupling, or incorrect component values. To troubleshoot, start by verifying the PCB layout and component values, and then check the power supply and input signals for noise and oscillations. You can also use a spectrum analyzer or oscilloscope to visualize the signals and identify the source of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
