LTC1067-50IGN#PBF - Analog Devices

Description: Active Filters R-to-R L/Noise Dual Filter Bldg Block

Download LTC1067-50IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

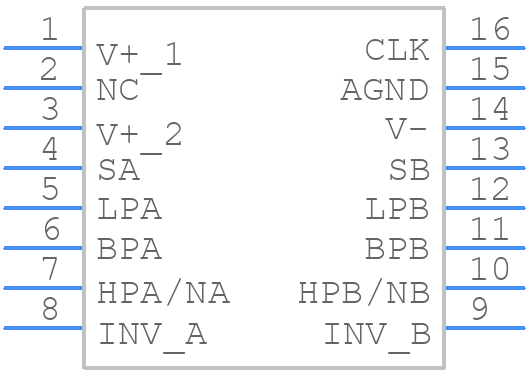

LTC1067-50IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1067-50IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-LEAD SSOP-GN [N-0.150]
click to zoom
3D Models
LTC1067-50IGN#PBF - Analog Devices - 3D model - Small Outline Packages - 16-LEAD SSOP-GN [N-0.150]
click to zoom

LTC1067-50IGN#PBF Details

  • Manufacturer Part Number:

    LTC1067-50IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    40 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    3.9116 mm

LTC1067-50IGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1067-50IGN#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and noise.
  • The choice of external components for the LTC1067-50IGN#PBF depends on the specific application and desired performance. The datasheet provides guidelines for selecting resistors and capacitors, but in general, it's recommended to use low-ESR capacitors and 1% tolerance resistors to ensure accuracy and stability.
  • The maximum power dissipation of the LTC1067-50IGN#PBF is 1.4W. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to keep the device away from other heat sources. Additionally, the device should be operated within the recommended temperature range of -40°C to 85°C.
  • The LTC1067-50IGN#PBF is rated for operation up to 85°C, but it can be used in high-temperature environments with some limitations. The device's accuracy and stability may degrade at higher temperatures, and the maximum power dissipation may need to be derated. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.
  • Common issues with the LTC1067-50IGN#PBF can often be troubleshooted by checking the PCB layout, ensuring proper power supply decoupling, and verifying the correct selection of external components. Additionally, it's recommended to consult the datasheet and application notes for troubleshooting guides and to use simulation tools to model the circuit and identify potential issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1067-50IGN#PBF Overview

Use the download button to access the LTC1067-50IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC10, or try a keyword search, such as Active Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
