LTC1067CGN#PBF - Analog Devices

Description: IC FILTR BLDNGBLK R-R DUAL16SSOP

Download LTC1067CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

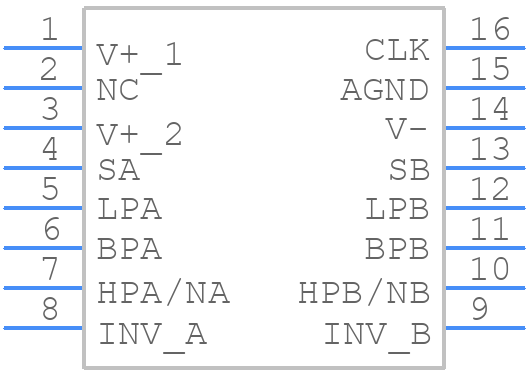

LTC1067CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1067CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC1067CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC1067CGN#PBF Details

  • Manufacturer Part Number:

    LTC1067CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    40 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    3.9116 mm

LTC1067CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1067CGN#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input and output capacitors close to the device.
  • The output filter components for the LTC1067CGN#PBF should be chosen based on the desired cutoff frequency and impedance. A good starting point is to use a 1uF capacitor and a 1kΩ resistor for the output filter. The values can be adjusted based on the specific application requirements.
  • The maximum power dissipation of the LTC1067CGN#PBF is 1.4W. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as a copper plane or a heat sink, and to keep the device in a well-ventilated area. Additionally, the device should be operated within the recommended temperature range of -40°C to 85°C.
  • Yes, the LTC1067CGN#PBF can be used in a switching power supply application. However, it's recommended to add additional filtering and decoupling to ensure the device can handle the high-frequency noise and transients present in switching power supplies.
  • Common issues with the LTC1067CGN#PBF can be troubleshooted by checking the power supply voltage, input and output impedance, and the output filter components. Additionally, it's recommended to check for any layout or grounding issues that may be causing oscillation or instability.
