LTC1067CS#PBF - Analog Devices

Description: Linear Technology LTC1067CS#PBF, Active Filter, Dual, Universal Filter, 2nd, 4th Order Switched Capacitor 20kHz, 16-Pin

Download LTC1067CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

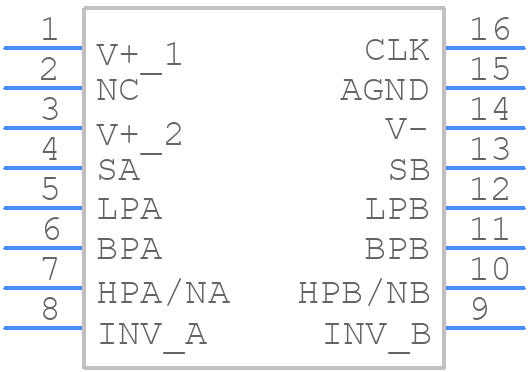

LTC1067CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1067CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-LEAD_S(SOIC)
click to zoom
3D Models
LTC1067CS#PBF - Analog Devices - 3D model - Small Outline Packages - 16-LEAD_S(SOIC)
click to zoom

LTC1067CS#PBF Details

  • Manufacturer Part Number:

    LTC1067CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    40 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    3.9 mm

LTC1067CS#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1067CS#PBF involves keeping the input and output pins away from each other, using a ground plane to reduce noise, and placing the device close to the power supply decoupling capacitors. Additionally, it's recommended to use a symmetrical layout and to avoid running high-frequency signals near the device.
  • The values of the external resistors and capacitors in the LTC1067CS#PBF filter circuit depend on the desired filter characteristics, such as the cutoff frequency, gain, and impedance. Analog Devices provides a filter design tool that can be used to calculate the optimal values for a given application. Additionally, the datasheet provides a set of recommended values for common filter configurations.
  • The maximum power supply voltage that the LTC1067CS#PBF can tolerate without damage is 18V. Exceeding this voltage can cause permanent damage to the device. It's recommended to use a voltage regulator or other protection circuitry to ensure that the power supply voltage remains within the recommended range.
  • Common issues with the LTC1067CS#PBF, such as oscillation or instability, can often be traced back to poor layout and placement, incorrect component values, or inadequate power supply decoupling. To troubleshoot these issues, it's recommended to check the layout and placement, verify the component values, and ensure that the power supply is properly decoupled. Additionally, using a scope or other test equipment to measure the device's output and input signals can help identify the root cause of the issue.
  • The LTC1067CS#PBF is rated for operation up to 70°C, but it can be used in high-temperature applications with some derating. The device's performance and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1067CS#PBF Overview

Use the download button to access the LTC1067CS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC10, or try a keyword search, such as Active Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
