Please enter a minimum 3 letters or numbers
Technical Content
Part Image

LTC1067IGN#PBF - Analog Devices

Description: IC FILTR BLDNGBLK R-R DUAL16SSOP

Download LTC1067IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

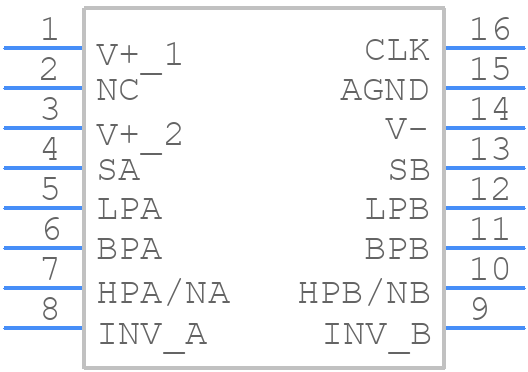

LTC1067IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1067IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP-ren1
click to zoom
3D Models
LTC1067IGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP-ren1
click to zoom

LTC1067IGN#PBF Details

  • Manufacturer Part Number:

    LTC1067IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    40 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    2 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    RESISTOR PROGRAMMABLE

  • Width:

    3.9116 mm

LTC1067IGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1067IGN#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the analog and digital grounds separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The maximum power dissipation of the LTC1067IGN#PBF is dependent on the package type and thermal resistance. For the IGN#PBF package, the maximum power dissipation is approximately 1.4W. To calculate the power dissipation, use the formula: Pd = (VIN - VOUT) x IOUT, where VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current.
  • While the LTC1067IGN#PBF is primarily designed as a low-pass filter, it can be used in switching regulator applications with some caveats. However, it's essential to ensure that the device is operated within its recommended frequency range and that the output capacitor is properly sized to handle the switching frequency.
  • To troubleshoot issues with the LTC1067IGN#PBF, start by verifying the PCB layout and component values. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to visualize the output waveform and identify any anomalies. If issues persist, consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1067IGN#PBF Overview

Use the download button to access the LTC1067IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC10, or try a keyword search, such as Active Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LTC1067IGN#PBF

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LTC1067IGN#PBF Alternates

Showing results

Image Part Number Model
Part Image LTC1067IGN#PBF Linear Technology

Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, PDSO16
Part Image LTC1067IGN Linear Technology

Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, PDSO16
Part Image LTC1067CGN Linear Technology

Switched Capacitor Filter, 2 Func, Resistor Programmable, Universal, CMOS, PDSO16
Part Image LTC1067IGN Analog Devices Inc

Active Filter, 2 Func, Resistor Programmable, Universal, CMOS, PDSO16
