LTC1069-1IS8#PBF - Analog Devices

Description: Active Filters L Pwr, 8th Order Progressive Elliptic, L

Download LTC1069-1IS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

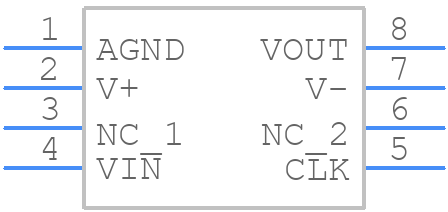

Symbol
LTC1069-1IS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1069-1IS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)_2025-1
click to zoom
3D Models
LTC1069-1IS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)_2025-1
click to zoom

LTC1069-1IS8#PBF Details

  • Manufacturer Part Number:

    LTC1069-1IS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    8 kHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -1.57 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    8 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.57 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    ELLIPTIC

  • Width:

    3.9 mm

LTC1069-1IS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1069-1IS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the performance of the LTC1069-1IS8 in a noisy environment, use a low-pass filter at the input, add a shield around the device, and use a high-quality power supply with a low noise floor. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum power dissipation of the LTC1069-1IS8 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated to 0.7W at 50°C ambient temperature.
  • Yes, the LTC1069-1IS8 can be used as a voltage-controlled oscillator (VCO) by applying a control voltage to the VCTRL pin. The frequency of oscillation can be varied by changing the control voltage. However, the VCO application requires careful consideration of the loop gain, phase margin, and stability.
  • To troubleshoot oscillation issues with the LTC1069-1IS8, check the power supply voltage, decoupling capacitors, and PCB layout. Ensure that the device is properly bypassed and that the input and output traces are short and separate. Use an oscilloscope to measure the output waveform and check for any signs of oscillation or ringing.
