LTC1069-7CS8#PBF - Analog Devices

Description: Active Filters Lin Ph8th Order Lpass Filt

Download LTC1069-7CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

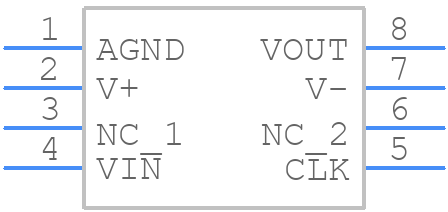

Symbol
LTC1069-7CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1069-7CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead
click to zoom
3D Models
LTC1069-7CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead
click to zoom

LTC1069-7CS8#PBF Details

  • Manufacturer Part Number:

    LTC1069-7CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    200 kHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    8 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BESSEL

  • Width:

    3.9 mm

LTC1069-7CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1069-7CS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The values of the external resistors and capacitors in the LTC1069-7CS8#PBF filter circuit depend on the desired filter characteristics, such as cutoff frequency, gain, and impedance. Analog Devices provides a filter design tool that can be used to calculate the optimal values for a given application. Additionally, the datasheet provides a set of recommended values for common filter configurations.
  • The maximum power dissipation of the LTC1069-7CS8#PBF is 1.4W. To ensure that it doesn't overheat, it's recommended to provide adequate heat sinking, such as a copper plane or a heat sink, and to keep the device away from other heat sources. Additionally, the device should be operated within the recommended temperature range of -40°C to 85°C.
  • Yes, the LTC1069-7CS8#PBF can be used in a single-supply application. To do so, the device requires a voltage divider to create a virtual ground, and the input and output signals should be level-shifted to accommodate the single supply voltage. The datasheet provides more information on how to configure the device for single-supply operation.
  • Common issues with the LTC1069-7CS8#PBF can often be attributed to poor PCB layout, incorrect component values, or inadequate power supply decoupling. To troubleshoot these issues, it's recommended to check the PCB layout for noise susceptibility, verify the component values, and ensure that the power supply is well-regulated and decoupled. Additionally, Analog Devices provides application notes and technical support resources to help troubleshoot and resolve issues.
