LTC1150CN8#PBF - Analog Devices

Description: LTC1150CN8#PBF, Operational Amplifier 1.8MHz CMOS 5 to 28V, 8-Pin PDIP

Download LTC1150CN8#PBF Model

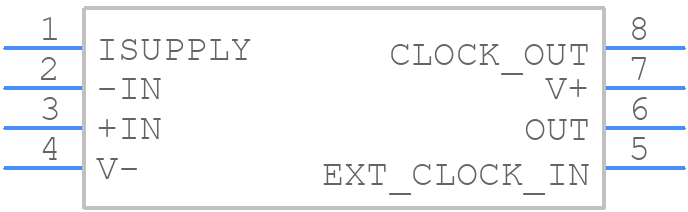

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1150CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8
click to zoom
3D Models
LTC1150CN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N8
click to zoom

LTC1150CN8#PBF Details

  • Manufacturer Part Number:

    LTC1150CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.78 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.445 mm

  • Slew Rate-Min:

    1.5 V/us

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2500

  • Voltage Gain-Min:

    10000000

  • Wideband:

    NO

  • Width:

    7.62 mm
