LTC1152CN8#PBF - Analog Devices

Description: LTC1152CN8#PBF, Operational Amplifier 0.7MHz Rail-Rail 3 to 12V, 8-Pin PDIP

Download LTC1152CN8#PBF Model

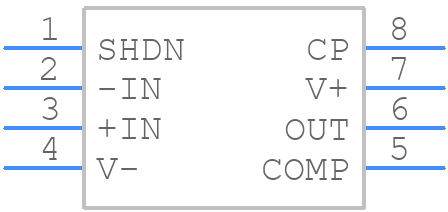

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1152CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300)--
click to zoom
3D Models
LTC1152CN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300)--
click to zoom

LTC1152CN8#PBF Details

  • Manufacturer Part Number:

    LTC1152CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    115 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    14 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    700

  • Voltage Gain-Min:

    316227.8

  • Wideband:

    NO

  • Width:

    7.62 mm
