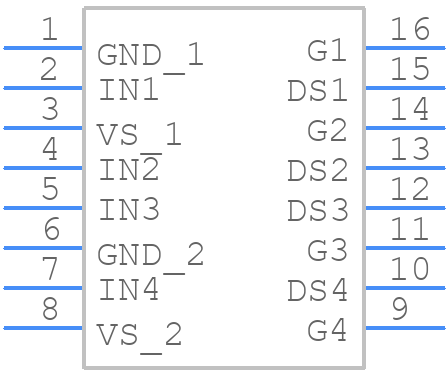

LTC1156CSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1156CSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic SOL
click to zoom
3D Models
LTC1156CSW#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic SOL
click to zoom

LTC1156CSW#PBF Details

  • Manufacturer Part Number:

    LTC1156CSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOL-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.2995 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.947 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    60 µs

  • Turn-on Time:

    2000 µs

  • Width:

    7.493 mm

LTC1156CSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1156CSW involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the IC and the bypass capacitors. A 4-layer board with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout in the 'Typical Application' section.
  • The input and output capacitors should be chosen based on the specific application requirements. For the input capacitor, a low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. For the output capacitor, a low-ESR ceramic or tantalum capacitor with a value between 10uF to 100uF is recommended. The datasheet provides more information on capacitor selection in the ' Capacitor Selection' section.
  • The maximum ambient temperature range for the LTC1156CSW is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance. It's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and reliability.
  • To ensure the LTC1156CSW is stable and doesn't oscillate, it's essential to follow the recommended PCB layout, choose the right input and output capacitors, and ensure that the input voltage is within the recommended range. Additionally, the datasheet provides a stability analysis section that can help designers identify potential stability issues.
  • The typical start-up time for the LTC1156CSW is around 100ms to 200ms, depending on the input voltage and output load. However, this time can vary depending on the specific application and design. It's essential to ensure that the device has sufficient time to start up and stabilize before applying the output load.
