LTC1255CS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1255CS8#PBF - IC, SWITCH DRIVER, SMD, SOIC8, 1255

Download LTC1255CS8#PBF Model

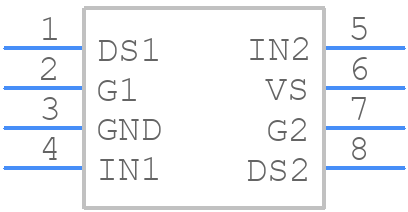

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1255CS8#PBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - S8 Package 8-Lead Plastic SOIC
click to zoom
3D Models
LTC1255CS8#PBF - Analog Devices  - 3D model - SOT23 (8-Pin) - S8 Package 8-Lead Plastic SOIC
click to zoom

LTC1255CS8#PBF Details

  • Manufacturer Part Number:

    LTC1255CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    STANDARD

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    18 V

  • Supply Voltage1-Max:

    24 V

  • Supply Voltage1-Min:

    9 V

  • Supply Voltage1-Nom:

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    60 µs

  • Turn-on Time:

    750 µs

  • Width:

    3.9 mm

LTC1255CS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1255CS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC1255CS8#PBF requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirements involve powering up the VCC pin before the VIN pin, and ensuring that the VCC pin is stable before applying the VIN pin.
  • The LTC1255CS8#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. Thermal considerations involve using a heat sink or a thermal pad, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power dissipation at higher temperatures.
  • Common issues with the LTC1255CS8#PBF can be troubleshooted by checking the power supply voltage, ensuring proper grounding and layout, and verifying the input and output signal integrity. Additionally, it's recommended to check for oscillations or instability by monitoring the output voltage with an oscilloscope, and adjusting the compensation components or the feedback network as needed.
  • The LTC1255CS8#PBF is designed to meet the EMI and EMC requirements of various regulatory bodies, such as the FCC and the EU's EMC Directive. To ensure compliance, it's recommended to use a shielded enclosure, keep the device and its associated components away from radiating sources, and use EMI filters or shielding on the input and output lines.
