LTC1261CS#PBF - Analog Devices

Description: Switching Voltage Regulators Adj Sw Cap Reg Volt Inverter

Download LTC1261CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

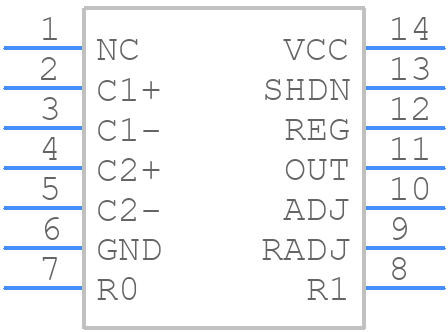

LTC1261CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1261CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC1261CS#PBF
click to zoom
3D Models
LTC1261CS#PBF - Analog Devices - 3D model - Small Outline Packages - LTC1261CS#PBF
click to zoom

LTC1261CS#PBF Details

  • Manufacturer Part Number:

    LTC1261CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR
