LTC1261CS8-4#PBF - Analog Devices

Description: Switching Voltage Regulators -4V Fix Sw Cap Reg Volt Inverter

Download LTC1261CS8-4#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

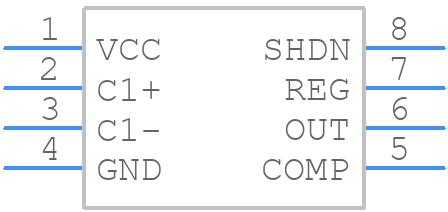

LTC1261CS8-4#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1261CS8-4#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1261CS8-4#PBF - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1261CS8-4#PBF Details

  • Manufacturer Part Number:

    LTC1261CS8-4#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Nom:

    -4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    550 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1261CS8-4#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1261CS8-4#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input and output traces short and direct.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The maximum input voltage for the LTC1261CS8-4#PBF is 15V. Exceeding this voltage can damage the device. It's recommended to use a voltage regulator or other protection circuitry to ensure the input voltage remains within the recommended range.
  • The LTC1261CS8-4#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's specifications and ensure proper thermal management to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the LTC1261CS8-4#PBF, start by verifying the input voltage, output voltage, and component values. Check for proper PCB layout and component placement. Use an oscilloscope to measure the output voltage and verify that it's within the expected range. If issues persist, consult the datasheet and application notes for guidance.
