LTC1261LCS8#PBF - Analog Devices

Description: Switching Voltage Regulators Adj Sw Cap Reg Volt Inverter

Download LTC1261LCS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

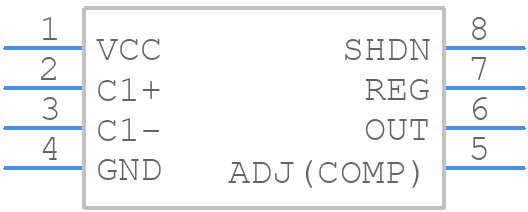

LTC1261LCS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1261LCS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LTC1261LCS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LTC1261LCS8#PBF Details

  • Manufacturer Part Number:

    LTC1261LCS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.02 A

  • Output Voltage-Max:

    -3.365 V

  • Output Voltage-Min:

    -1.552 V

  • Output Voltage-Nom:

    -1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    650 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1261LCS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1261LCS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To optimize the performance of the LTC1261LCS8, it's essential to consider the specific requirements of your application, such as the input signal frequency, amplitude, and impedance. You should also ensure that the device is operated within its recommended operating conditions, and that the PCB layout is optimized for low noise and distortion.
  • Potential sources of noise and distortion in the LTC1261LCS8 include thermal noise, shot noise, and electromagnetic interference (EMI). To mitigate these effects, you can use techniques such as shielding, filtering, and grounding, as well as ensuring that the device is operated within its recommended operating conditions.
  • To troubleshoot issues with the LTC1261LCS8, start by verifying that the device is properly powered and that the input signals are within the recommended range. Check the PCB layout for any potential sources of noise or distortion, and ensure that the device is operated within its recommended operating conditions. You can also use tools such as oscilloscopes and signal analyzers to help diagnose the issue.
  • Yes, the LTC1261LCS8 has a maximum junction temperature of 150°C, and it's essential to ensure that the device is operated within its recommended operating temperature range. You can use thermal management techniques such as heat sinking, thermal interfaces, and airflow management to help keep the device within its recommended operating temperature range.
