LTC1390CS#PBF - Analog Devices

Description: Linear Technology LTC1390CS#PBF, Multiplexer Single 8:1, 3 V, 16-Pin SOIC

Download LTC1390CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

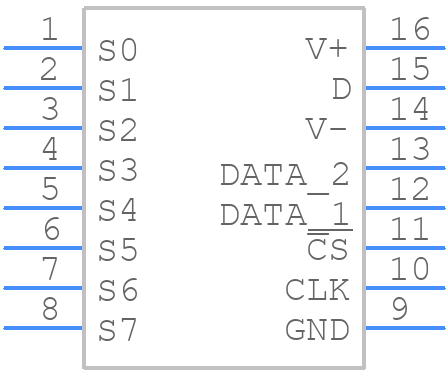

Symbol
LTC1390CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1390CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1390CS#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1390CS#PBF Details

  • Manufacturer Part Number:

    LTC1390CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE WITH 3 V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    15 Ω

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    200 ns

  • Switch-on Time-Max:

    400 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1390CS#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1390CS#PBF involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a solid ground plane and to keep the device away from high-frequency noise sources.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim pins to achieve the desired output. It's also recommended to use a high-precision voltage reference and to calibrate the device in the same environment in which it will be used.
  • The LTC1390CS#PBF is specified to operate over a temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at extreme temperatures. Additionally, the device is sensitive to moisture and humidity, so it's recommended to use it in a dry, clean environment.
  • To troubleshoot common issues with the LTC1390CS#PBF, start by checking the power supply voltage, input voltage, and output voltage to ensure they are within the specified ranges. Check for proper grounding and decoupling, and ensure that the device is properly calibrated. If issues persist, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the LTC1390CS#PBF is suitable for use in high-reliability applications, but it's recommended to follow the manufacturer's guidelines for reliability and to perform thorough testing and validation to ensure the device meets the required specifications and standards.
