LTC1391CGN#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1391CGN#PBF - MUX 8CH SERIAL, SMD, 1391, SSOP16

Download LTC1391CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

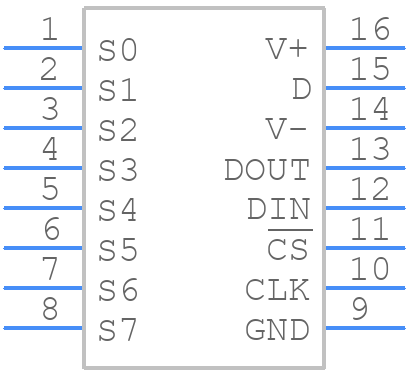

LTC1391CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1391CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1391CGN#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1391CGN#PBF Details

  • Manufacturer Part Number:

    LTC1391CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE WITH 2.7 V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    15 Ω

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    200 ns

  • Switch-on Time-Max:

    400 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LTC1391CGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1391CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To ensure the accuracy and stability of the LTC1391CGN#PBF's internal oscillator, it's recommended to use a high-quality external clock source, such as a crystal oscillator, and to decouple the VCC pin with a low-ESR capacitor. Additionally, the device should be operated within the recommended temperature range and the power supply should be well-regulated.
  • The maximum allowable input voltage range for the LTC1391CGN#PBF is ±5V, and exceeding this range can cause the device to malfunction or be damaged. The input voltage range affects the device's performance by influencing the accuracy and linearity of the conversion, as well as the device's power consumption and noise immunity.
  • The LTC1391CGN#PBF has built-in overvoltage protection (OVP) and undervoltage protection (UVP) mechanisms. The OVP circuitry limits the input voltage to prevent damage from excessive voltages, while the UVP circuitry prevents the device from operating below the minimum specified voltage. Additionally, the device has a power-on reset (POR) circuit that resets the device when the power supply voltage falls below a certain threshold.
  • The typical power consumption of the LTC1391CGN#PBF is around 20mA, but it can be minimized by reducing the clock frequency, using a lower power supply voltage, and disabling the device when not in use. Additionally, the device has a shutdown mode that can be used to reduce power consumption to less than 1μA.
