LTC1441IS8#PBF - Analog Devices

Description: Analog Comparators uP Dual COMPARATORarator

Download LTC1441IS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

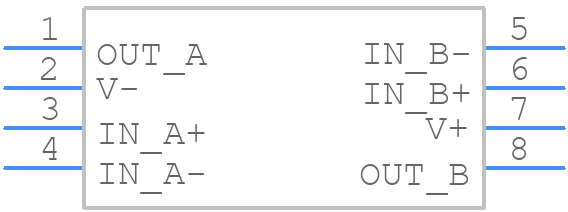

Symbol
LTC1441IS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1441IS8#PBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - S8 Package
click to zoom
3D Models
LTC1441IS8#PBF - Analog Devices - 3D model - SOT23 (8-Pin) - S8 Package
click to zoom

LTC1441IS8#PBF Details

  • Manufacturer Part Number:

    LTC1441IS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -0.3 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    14000 ns

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1441IS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1441IS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC1441IS8#PBF is specified to operate from -40°C to 85°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating due to high ambient temperatures or high power dissipation, and consider using thermal management techniques such as thermal pads or heat sinks.
  • The recommended input voltage range for the LTC1441IS8#PBF is 4.5V to 5.5V. Operating outside this range may affect the device's performance, including reduced accuracy, increased noise, and potential damage to the device. It's essential to ensure the input voltage is within the specified range to guarantee optimal performance.
  • To troubleshoot common issues with the LTC1441IS8#PBF, start by verifying the input voltage, checking for proper PCB layout and grounding, and ensuring the device is operated within its specified temperature range. Also, check for any signs of physical damage, such as overheating or electrical overstress. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.
  • The LTC1441IS8#PBF is a high-reliability device, but it's essential to evaluate its suitability for safety-critical applications. Consider factors such as the device's fault tolerance, failure modes, and compliance with relevant safety standards. Additionally, consult with Analog Devices' technical support and perform thorough testing and validation to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1441IS8#PBF Overview

Use the download button to access the LTC1441IS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC14, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
