LTC1446CS8#PBF - Analog Devices

Description: LTC1446CS8#PBF, 12 bit-Bit DAC Dual, SPI, 8-Pin SOIC

Download LTC1446CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

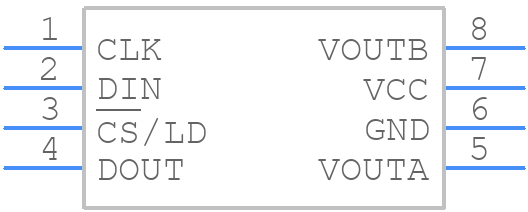

Symbol
LTC1446CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1446CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8(SOIC)
click to zoom
3D Models
LTC1446CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8(SOIC)
click to zoom

LTC1446CS8#PBF Details

  • Manufacturer Part Number:

    LTC1446CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.145 V

  • Analog Output Voltage-Min:

    4.045 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.1221%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1446CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1446CS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and electromagnetic interference (EMI).
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the LTC1446CS8's power pins. Additionally, use a low-ESR capacitor (e.g., 10uF) on the output pin.
  • The LTC1446CS8 can handle clock frequencies up to 100 kHz, but the maximum frequency may vary depending on the specific application and noise conditions. It's recommended to consult the datasheet and application notes for more information.
  • To configure the LTC1446CS8 for a specific voltage output, use the internal voltage reference and adjust the feedback resistors (R1 and R2) according to the desired output voltage. Consult the datasheet and application notes for specific resistor values and configuration examples.
  • The typical settling time for the LTC1446CS8's output voltage is around 100-200 microseconds, but this may vary depending on the specific application, output voltage, and load conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1446CS8#PBF Overview

Use the download button to access the LTC1446CS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC14, or try a keyword search, such as Digital to Analog Converters
