LTC1451IS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC1451IS8#PBF - Digital to Analogue Converter, 12 bit, Serial, 4.5V to 5.5V, SOIC, 8 Pins

Download LTC1451IS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

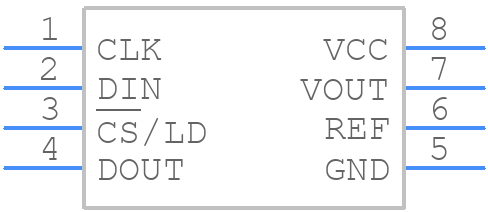

Symbol
LTC1451IS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1451IS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom
3D Models
LTC1451IS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom

LTC1451IS8#PBF Details

  • Manufacturer Part Number:

    LTC1451IS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.145 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1451IS8#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VCC bypass and place it close to the IC.
  • The LTC1451IS8#PBF requires a single 5V supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the digital supply (VCC) before the analog supply (VIN).
  • The maximum clock frequency for the LTC1451IS8#PBF is 20MHz. The clock input should be a CMOS-compatible signal with a rise and fall time of less than 10ns. A clock signal with a 50% duty cycle is recommended.
  • The LTC1451IS8#PBF has a maximum junction temperature of 150°C. Ensure good airflow around the IC, and use a heat sink if necessary. The thermal resistance (θJA) is 30°C/W, and the thermal resistance (θJC) is 10°C/W.
  • The LTC1451IS8#PBF has built-in ESD protection, but it's still recommended to use ESD protection devices at the input pins. For latch-up prevention, ensure that the IC is powered up and down slowly, and avoid voltage spikes or transients on the power supplies.
