LTC1502CMS8-3.3#PBF - Analog Devices

Description: Charge Pump STPUP 3.3V 10mA 8-Pin MSOP Tube

Download LTC1502CMS8-3.3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

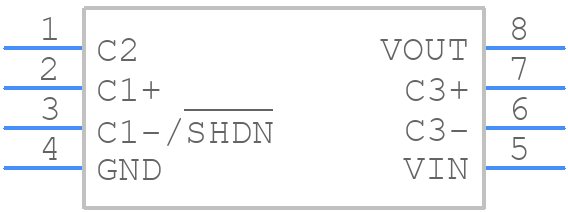

Symbol
LTC1502CMS8-3.3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1502CMS8-3.3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (LTC DWG # 05-08-1660)_1
click to zoom
3D Models
LTC1502CMS8-3.3#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (LTC DWG # 05-08-1660)_1
click to zoom

LTC1502CMS8-3.3#PBF Details

  • Manufacturer Part Number:

    LTC1502CMS8-3.3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    1.8 V

  • Input Voltage-Min:

    0.9 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    3.43 V

  • Output Voltage-Min:

    3.17 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1502CMS8-3.3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1502CMS8-3.3#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, the LTC1502CMS8-3.3#PBF requires a minimum output capacitance of 10uF, and the output voltage should be decoupled with a 10nF capacitor. Additionally, the input voltage should be well-regulated and decoupled with a 10uF capacitor. The datasheet provides a stability analysis and a recommended compensation network that should be followed.
  • The maximum ambient temperature range for the LTC1502CMS8-3.3#PBF is -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, and the output voltage may droop. It is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LTC1502CMS8-3.3#PBF is suitable for high-reliability and automotive applications. It is built with high-reliability materials and manufacturing processes, and it meets the requirements of the AEC-Q100 automotive standard. However, it is recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the specific application's requirements.
  • To troubleshoot issues with the LTC1502CMS8-3.3#PBF, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are properly sized and connected. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines and consult with Analog Devices Inc. for further assistance if needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1502CMS8-3.3#PBF Overview

Use the download button to access the LTC1502CMS8-3.3#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC15, or try a keyword search, such as Switching Regulator or Controllers
