LTC1540IDD#PBF - Analog Devices

Description: Analog Comparators Nanopower Comp w/ Ref

Download LTC1540IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

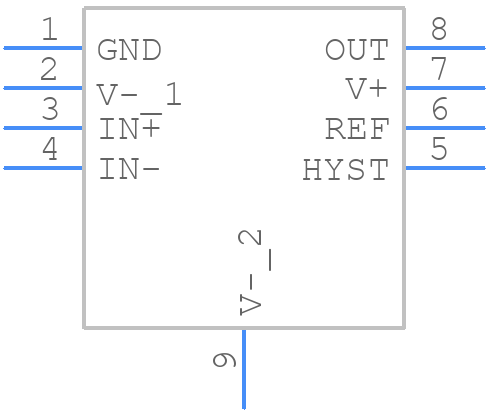

LTC1540IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1540IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn-8
click to zoom
3D Models
LTC1540IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - dfn-8
click to zoom

LTC1540IDD#PBF Details

  • Manufacturer Part Number:

    LTC1540IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    70000 ns

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1540IDD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1540IDD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC1540IDD#PBF requires a single 2.7V to 5.5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the VCC pin before the VIN pin, and to power down the VIN pin before the VCC pin.
  • The maximum allowable input voltage for the LTC1540IDD#PBF is 5.5V. Exceeding this voltage can cause permanent damage to the device. It's recommended to use input voltage limiting resistors or voltage clamps to prevent overvoltage conditions.
  • To optimize the LTC1540IDD#PBF's performance, consider the input signal frequency, amplitude, and impedance, as well as the output load and capacitance. Adjust the gain and bandwidth settings accordingly, and ensure the device is operated within its recommended operating conditions.
  • The LTC1540IDD#PBF has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermally conductive package, and avoiding high-power dissipation. Monitor the device's temperature and adjust the operating conditions accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1540IDD#PBF Overview

Use the download button to access the LTC1540IDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC15, or try a keyword search, such as Comparators
