LTC1540IDD#TRPBF - Analog Devices

Description: Analog Comparators Nanopwr(300nA)Comp.w/2% Volt Ref

Download LTC1540IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

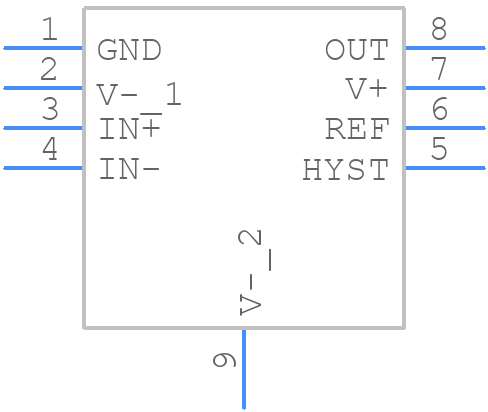

Symbol
LTC1540IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1540IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LTC1540IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom

LTC1540IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC1540IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    70000 ns

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1540IDD#TRPBF Frequently Asked Questions (FAQs)

  • The datasheet provides some guidelines, but it's recommended to follow Analog Devices' application note AN103 (Layout and Grounding Techniques for Switching Regulators) for optimal layout and placement. Additionally, keep the input and output capacitors close to the IC, and use a solid ground plane to minimize noise and EMI.
  • Ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high currents. Also, follow the thermal design guidelines in the datasheet to ensure the device operates within its specified temperature range.
  • Exceeding the maximum input voltage rating can cause permanent damage to the device, including latch-up or even destruction. It's essential to ensure the input voltage remains within the specified range to prevent damage and ensure reliable operation.
  • Start by checking the input and output voltage levels, and ensure the device is properly decoupled. Verify the layout and placement of components, and check for any signs of overheating. If issues persist, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
  • The LTC1540IDD#TRPBF is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. Consult with Analog Devices' technical support and review the device's reliability and quality data to determine its suitability for such applications.
