LTC1541CDD#PBF - Analog Devices

Description: Micropower Op Amp, Comparator and Reference

Download LTC1541CDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

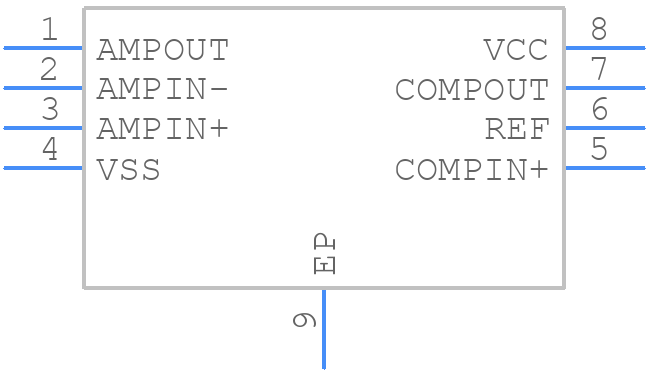

Symbol
LTC1541CDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1541CDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)_2024
click to zoom
3D Models
LTC1541CDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)_2024
click to zoom

LTC1541CDD#PBF Details

  • Manufacturer Part Number:

    LTC1541CDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229-WEED, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE WITH 5V SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1541CDD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1541CDD involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To ensure the accuracy of the ADC conversion results, it's essential to follow proper PCB layout and design guidelines, use a stable and low-noise power supply, and minimize noise and interference on the analog input signals. Additionally, calibration and trimming of the ADC may be necessary to achieve optimal performance.
  • The maximum sampling rate of the LTC1541CDD is 1.5Msps (Mega Samples Per Second). However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signals.
  • Yes, the LTC1541CDD can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple analog input channels. However, the maximum sampling rate and conversion time may be affected by the number of channels and the multiplexing scheme used.
  • The LTC1541CDD has built-in overvoltage protection on the analog input pins, but it's still recommended to use external protection circuitry, such as clamping diodes or voltage-limiting resistors, to prevent damage from excessive voltage levels. For undervoltage conditions, it's recommended to use a voltage regulator or a voltage reference to ensure a stable and accurate analog input signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1541CDD#PBF Overview

Use the download button to access the LTC1541CDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC15, or try a keyword search, such as Other Signal Circuits
