LTC1541IDD#PBF - Analog Devices

Description: Micropower Op Amp, Comparator and Reference

Download LTC1541IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

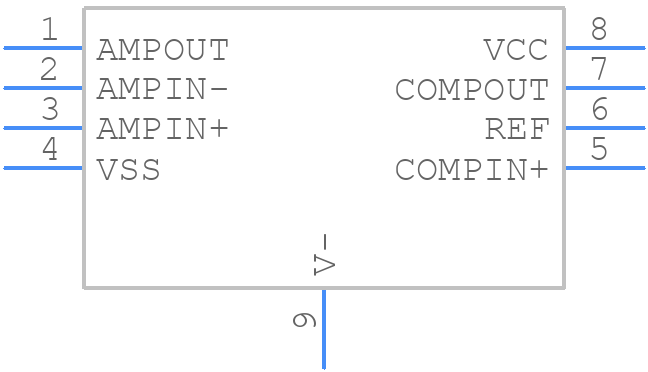

Symbol
LTC1541IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1541IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE-1
click to zoom
3D Models
LTC1541IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE-1
click to zoom

LTC1541IDD#PBF Details

  • Manufacturer Part Number:

    LTC1541IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Bias Current-Max (IIB) @25C:

    0.001 µA

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    1750 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    8 V/us

  • Supply Current-Max:

    0.016 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    12

  • Voltage Gain-Min:

    10

  • Wideband:

    NO

  • Width:

    3 mm

LTC1541IDD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1541IDD#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass capacitor and to keep the analog and digital grounds separate.
  • The LTC1541IDD#PBF requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements involve powering the device after the analog input signals are present and stable, and ensuring that the power supply is stable before enabling the device.
  • The maximum allowable input voltage for the LTC1541IDD#PBF is 5.5V. To protect the device from overvoltage, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input pins. Additionally, it's recommended to use a series resistor to limit the input current.
  • The LTC1541IDD#PBF does not require calibration. However, it's recommended to perform a system-level calibration to ensure the accuracy of the measurement. This involves applying a known input signal and adjusting the system gain and offset to achieve the desired accuracy.
  • The typical settling time for the LTC1541IDD#PBF is 10μs. The settling time affects the system performance by determining the maximum sampling rate and the accuracy of the measurement. A longer settling time may be required for high-accuracy applications or when using a high-gain amplifier.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1541IDD#PBF Overview

Use the download button to access the LTC1541IDD#PBF schematic symbol, PCB footprint, and 3D model.
