LTC1563-2IGN#TRPBF - Analog Devices

Description: IC FILTER 256KHZ LOWPASS 16SSOP

Download LTC1563-2IGN#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

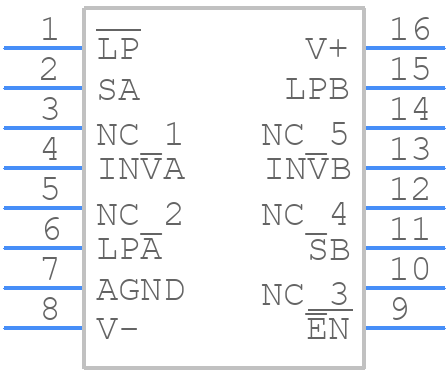

LTC1563-2IGN#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1563-2IGN#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC1563-2IGN#TRPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC1563-2IGN#TRPBF Details

  • Manufacturer Part Number:

    LTC1563-2IGN#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Center or Cutoff Freq Rng-Max:

    256 kHz

  • Center or Cutoff Freq Rng-Min:

    0.256 kHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    4 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    BUTTERWORTH

  • Width:

    3.899 mm

LTC1563-2IGN#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1563-2IGN#TRPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC1563-2IGN#TRPBF requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD).
  • The LTC1563-2IGN#TRPBF can handle clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The LTC1563-2IGN#TRPBF can be configured for different filter responses by adjusting the values of the external resistors and capacitors. The device has a programmable filter response, which can be set using the FILT pin. The filter response can be set to low-pass, band-pass, or high-pass by connecting the FILT pin to VCC, GND, or leaving it open, respectively.
  • The LTC1563-2IGN#TRPBF can handle input signal amplitudes up to 2.5Vpp differential or 1.25Vpp single-ended. Exceeding this maximum input signal amplitude may result in distortion or clipping of the output signal.
