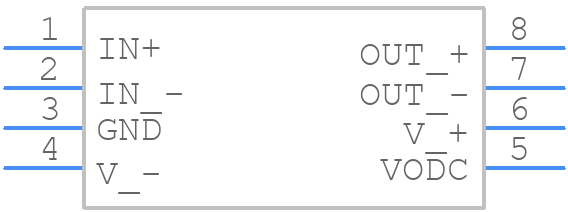

LTC1566-1CS8 - Analog Devices

LTC1566-1CS8 Details

• Manufacturer Part Number:

  LTC1566-1CS8

• Part Life Cycle Code:

  Active

• Package Description:

  0.150 INCH, PLASTIC, SOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Active Filter Type:

  CONTINUOUS TIME FILTER

• Additional Feature:

  IT CAN ALSO OPERATE FROM A SINGLE 5V SUPPLY

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  4.9025 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Poles and Zeros:

  7 AND 0

• Qualification Status:

  Not Qualified

• Response:

  LOWPASS

• Seated Height-Max:

  1.752 mm

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Transfer Characteristics:

  BESSEL

• Width:

  3.899 mm
