LTC1595BCS8#TRPBF - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit Serial Multiplying DAC

Download LTC1595BCS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

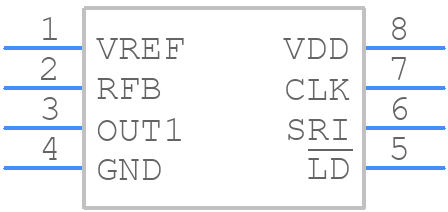

LTC1595BCS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1595BCS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC1595BCS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC1595BCS8#TRPBF Details

  • Manufacturer Part Number:

    LTC1595BCS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1595BCS8#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1595BCS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure proper powering and decoupling, use a low-ESR capacitor (e.g., 10uF ceramic) between VCC and GND, and a 0.1uF ceramic capacitor between AVCC and AGND. Place these capacitors close to the device. Additionally, use a 1uF capacitor between DVCC and DGND for digital power supply decoupling.
  • The LTC1595BCS8 supports clock frequencies up to 50MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • The LTC1595BCS8 conversion rate can be configured by setting the SCLK and MCLK pins. For example, to achieve a 50ksps conversion rate, set SCLK to 2.4576MHz and MCLK to 122.88kHz. Refer to the datasheet for specific configuration details.
  • The recommended method for driving the LTC1595BCS8's analog inputs involves using a low-impedance source, such as an op-amp buffer, to drive the analog signal. This helps to minimize noise and ensure accurate conversions.
