LTC1596-1ACSW#PBF - Analog Devices

Description: Linear Technology LTC1596-1ACSW#PBF, 16 bit Serial DAC, 200ksps, 16-Pin SOIC W

Download LTC1596-1ACSW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

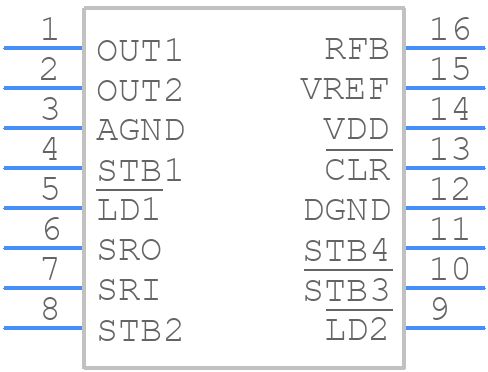

LTC1596-1ACSW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1596-1ACSW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package 16-Lead Plastic Small Outline
click to zoom
3D Models
LTC1596-1ACSW#PBF - Analog Devices - 3D model - Small Outline Packages - SW Package 16-Lead Plastic Small Outline
click to zoom

LTC1596-1ACSW#PBF Details

  • Manufacturer Part Number:

    LTC1596-1ACSW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC1596-1ACSW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1596-1ACSW#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC1596-1ACSW#PBF requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. Power sequencing is not critical, but it's recommended to power up the device after the analog power supply is stable.
  • The maximum clock frequency for the LTC1596-1ACSW#PBF is 50MHz, but it's recommended to use a clock frequency between 10MHz to 20MHz for optimal performance.
  • The LTC1596-1ACSW#PBF can be programmed using a 3-wire serial interface. The gain and offset can be set using the internal registers, and the device can be configured for unipolar or bipolar operation.
  • The thermal resistance of the LTC1596-1ACSW#PBF package is 45°C/W (junction-to-ambient) and 10°C/W (junction-to-case).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1596-1ACSW#PBF Overview

Use the download button to access the LTC1596-1ACSW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC15, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
