LTC1664CGNPBF - Analog Devices

Description: Tiny: 4 DACs in the Board Space of an SO-8 n Micropower: 59µA per DAC Plus 1µA Sleep Mode for Extended Battery Life n Wide 2.7V to 5.5V Supply Range n Rail-to-Rail Voltage Outputs Drive 1000pF n Reference Range Includes Supply for Ratiometric 0V to VCC Output n Reference Input Impedance is Code-Independent —Eliminates External Reference Buffer n Individually Addressable DACs n Differential Nonlinearity: ≤ ±0.75LSB Max n Pin-Compatible Octal Version Available (LTC1660)

Download LTC1664CGNPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

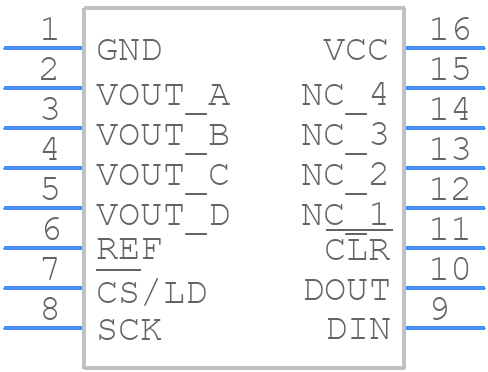

LTC1664CGNPBF - Analog Devices - PCB symbol
