LTC1668IG#PBF - Analog Devices

Description: Linear Technology LTC1668IG#PBF, 16 bit Parallel DAC, 50Msps, 28-Pin SSOP

Download LTC1668IG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

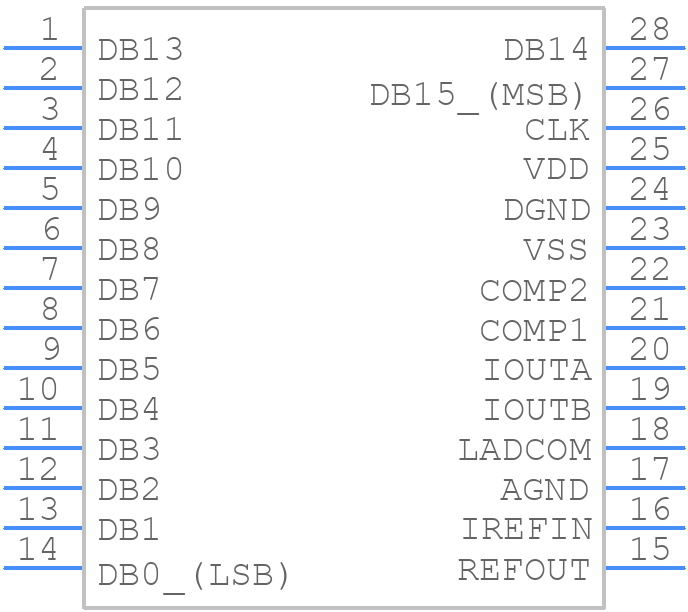

LTC1668IG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1668IG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 28-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640)
click to zoom
3D Models
LTC1668IG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 28-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640)
click to zoom

LTC1668IG#PBF Details

  • Manufacturer Part Number:

    LTC1668IG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5.30 MM, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    0.02 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1668IG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1668IG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC1668IG#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirement is to power up the VCC pin before the VIN pin. It's also recommended to add a 10uF capacitor between VCC and GND to filter out noise.
  • The LTC1668IG#PBF can achieve a maximum data transfer rate of 100kbps in the SPI mode and 400kbps in the Microwire mode.
  • To implement the LTC1668IG#PBF in a multi-channel application, you can use multiple devices, each connected to a separate channel. You can also use a single device with a multiplexer or a scanner to select the desired channel. Additionally, you can use the device's built-in channel selection feature to select the desired channel.
  • The LTC1668IG#PBF has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to keep the device within the specified operating temperature range (-40°C to 85°C), use a heat sink if necessary, and ensure good airflow around the device.
