LTC1682IMS8-5#PBF - Analog Devices

Description: Charge Pump STPUP 5V 50mA Automotive 8-Pin MSOP Tube

Download LTC1682IMS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

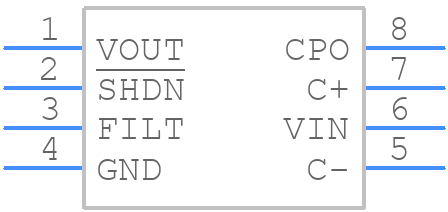

LTC1682IMS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1682IMS8-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP -----
click to zoom
3D Models
LTC1682IMS8-5#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP -----
click to zoom

LTC1682IMS8-5#PBF Details

  • Manufacturer Part Number:

    LTC1682IMS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    4.4 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.05 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.17 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER

  • Switching Frequency-Max:

    620 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1682IMS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1682 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the resistors. A 4-layer board with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended layout diagram that can be used as a reference.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. The datasheet provides a calibration procedure, and it's recommended to use a thermocouple or other temperature sensor to verify the accuracy of the measurement.
  • The maximum cable length that can be used with the LTC1682 depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 10 feet) to minimize signal attenuation and noise pickup. If a longer cable is required, it's recommended to use a shielded cable and to add signal conditioning circuitry to compensate for signal loss.
  • Yes, the LTC1682 can be used in a multi-drop bus configuration, but it requires careful consideration of the bus loading and signal integrity. The datasheet provides guidelines for bus loading and termination, and it's recommended to use a bus buffer or repeater to ensure signal integrity in a multi-drop configuration.
  • To troubleshoot issues with the LTC1682, start by verifying the power supply voltage, checking for proper connections and soldering, and ensuring that the device is properly configured. Use an oscilloscope to verify the signal waveforms and check for noise or distortion. The datasheet provides a troubleshooting guide, and it's recommended to consult the application notes and FAQs on the Analog Devices website for additional guidance.
