LTC1693-3CMS8#TRPBF - Analog Devices

Description: Driver 1.7A 1-OUT High Side/Low Side Inv/Non-Inv 8-Pin MSOP T/R

Download LTC1693-3CMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

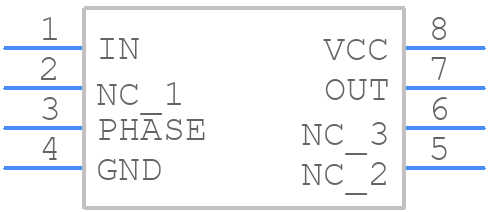

Symbol
LTC1693-3CMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1693-3CMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP -----
click to zoom
3D Models
LTC1693-3CMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP -----
click to zoom

LTC1693-3CMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC1693-3CMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.17 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    48 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3 mm

LTC1693-3CMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1693-3 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the battery or power source. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure accurate voltage monitoring, it's essential to use a high-accuracy voltage reference, such as the internal reference of the LTC1693-3, and to minimize noise and interference on the voltage sense lines. Additionally, the voltage sense lines should be routed close together and away from noise sources.
  • The maximum cable length for the voltage sense lines of the LTC1693-3 depends on the specific application and the noise environment. As a general rule, the cable length should be kept as short as possible, but in most cases, a cable length of up to 10 inches (25 cm) is acceptable.
  • Yes, the LTC1693-3 can be used to monitor multiple voltage sources by using multiple voltage sense lines and connecting them to different voltage sources. However, the device can only monitor one voltage source at a time, so you would need to use multiple devices or a multiplexer to monitor multiple sources simultaneously.
  • The LTC1693-3 does not require calibration for accurate voltage monitoring. The device has an internal voltage reference and a high-accuracy ADC that provides accurate voltage measurements. However, it's essential to follow proper PCB layout and routing guidelines to minimize noise and interference.
