LTC1735IS#PBF - Analog Devices

Description: Linear Technology, LTC1735IS#PBF Switching Regulator 3A Adjustable, 0.8 → 6 V, 16-Pin SOIC

Download LTC1735IS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

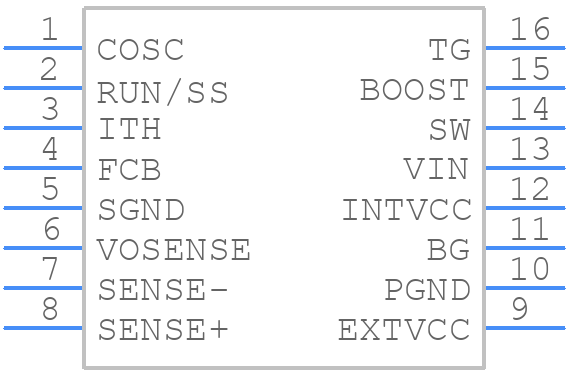

LTC1735IS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1735IS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-LEAD_S(SOIC)
click to zoom
3D Models
LTC1735IS#PBF - Analog Devices - 3D model - Small Outline Packages - 16-LEAD_S(SOIC)
click to zoom

LTC1735IS#PBF Details

  • Manufacturer Part Number:

    LTC1735IS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    335 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC1735IS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1735IS#PBF involves separating the analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from each other. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC1735IS#PBF requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the VIN pin first, followed by the VCC pin.
  • The LTC1735IS#PBF can drive a maximum capacitive load of 1000pF. Exceeding this limit may cause instability or oscillations in the output.
  • The output voltage of the LTC1735IS#PBF can be adjusted by using an external resistor divider network connected to the FB pin. The resistor values can be calculated using the formula provided in the datasheet.
  • The thermal derating of the LTC1735IS#PBF is 1.5% per °C above 25°C. This means that the device's output current capability will decrease as the temperature increases. It's essential to ensure proper heat sinking and thermal management to maintain the device's performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1735IS#PBF Overview

Use the download button to access the LTC1735IS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC17, or try a keyword search, such as Switching Regulator or Controllers
