LTC1756EGN#PBF - Analog Devices

Description: Linear Technology LTC1756EGN#PBF, Input Output Controller, 16-Pin SSOP

Download LTC1756EGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

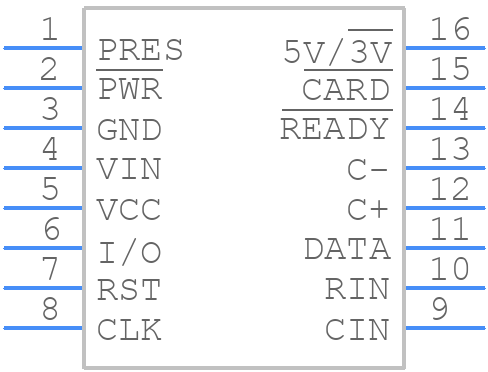

LTC1756EGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1756EGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.150)-1
click to zoom
3D Models
LTC1756EGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.150)-1
click to zoom

LTC1756EGN#PBF Details

  • Manufacturer Part Number:

    LTC1756EGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 5V NOMINAL SUPPLY

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC1756EGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1756EGN involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide to minimize noise and EMI. Additionally, it's recommended to place a 10uF ceramic capacitor between the VCC and GND pins to filter out high-frequency noise.
  • To ensure the LTC1756EGN is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying VCC before applying an input signal. Also, ensure that the input signal is within the specified range and that the device is properly configured through the control pins.
  • The LTC1756EGN has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • To troubleshoot issues with the LTC1756EGN, start by verifying the power supply and input signal. Check for proper voltage levels, signal integrity, and noise levels. Use an oscilloscope to visualize the input and output signals. Also, check the device's configuration and ensure that it's properly initialized. If the issue persists, consult the datasheet and application notes for guidance.
  • The LTC1756EGN is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure its suitability for safety-critical applications. Consult the datasheet and relevant industry standards (e.g., IEC 61508, ISO 26262) for guidance on designing and testing safety-critical systems.
