LTC1759CG#PBF - Analog Devices

Description: IC SMART BATTERY CHARGER 36SSOP

Download LTC1759CG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

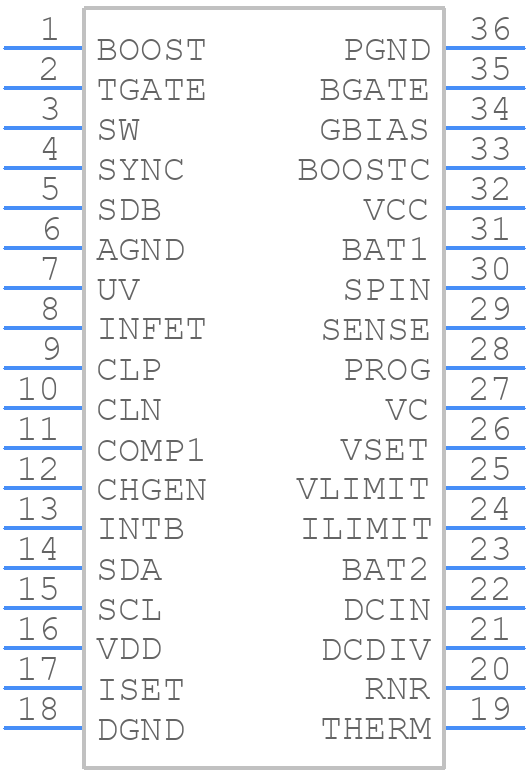

LTC1759CG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1759CG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 36-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640
click to zoom
3D Models
LTC1759CG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 36-Lead Plastic SSOP (0.209) (LTC DWG # 05-08-1640
click to zoom

LTC1759CG#PBF Details

  • Manufacturer Part Number:

    LTC1759CG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.209 INCH, PLASTIC, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1640 (G36)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    20 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    230 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1759CG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC1759CG involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. A 4-layer board with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the datasheet's guidelines for pin connections and component placement.
  • To ensure stability, make sure to follow the datasheet's guidelines for component selection, particularly the input and output capacitors. Choose capacitors with low ESR and high ripple current ratings. Also, ensure that the feedback resistors are properly selected and placed close to the IC. Finally, verify that the PCB layout is well-designed and doesn't introduce any unwanted parasitic inductances or capacitances.
  • The maximum input voltage that the LTC1759CG can handle is 15V. However, it's recommended to operate the device within the specified input voltage range of 3.5V to 12V for optimal performance and reliability.
  • The LTC1759CG is rated for operation up to 125°C. However, it's essential to ensure that the device is properly derated for high-temperature operation. Consult the datasheet for thermal derating guidelines and ensure that the device is properly heat-sinked if necessary.
  • To troubleshoot issues with the LTC1759CG, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1759CG#PBF Overview

Use the download button to access the LTC1759CG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC17, or try a keyword search, such as Switching Regulator or Controllers
