LTC1871EMS-1#PBF - Analog Devices

Description: Switching Controllers No Rsense DC/DC Controller Boost, Flyback & SEPIC

Download LTC1871EMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

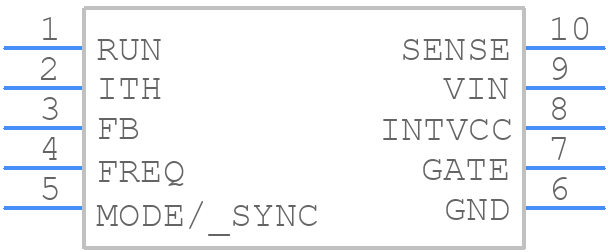

LTC1871EMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1871EMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10- MSOP
click to zoom
3D Models
LTC1871EMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - 10- MSOP
click to zoom

LTC1871EMS-1#PBF Details

  • Manufacturer Part Number:

    LTC1871EMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1871EMS-1#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC1871EMS-1#PBF is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 36V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum output current that the LTC1871EMS-1#PBF can deliver is 1A, but it's recommended to operate within the specified output current range of 0.1A to 0.5A for optimal performance and to prevent overheating.
  • To protect the LTC1871EMS-1#PBF from overheating, ensure good thermal conduction by using a heat sink or a thermally conductive pad, and operate the device within the specified temperature range of -40°C to 125°C. Also, avoid operating the device at maximum output current for extended periods.
  • Yes, the LTC1871EMS-1#PBF is suitable for high-reliability applications, such as aerospace, automotive, and industrial control systems, due to its high-quality manufacturing process and rigorous testing procedures. However, it's essential to follow the recommended design and layout guidelines to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1871EMS-1#PBF Overview

Use the download button to access the LTC1871EMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC18, or try a keyword search, such as Switching Regulator or Controllers
