LTC1960CG#PBF - Analog Devices

Description: Linear Technology LTC1960CG#PBF, Battery Charger, 36-Pin SSOP

Download LTC1960CG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

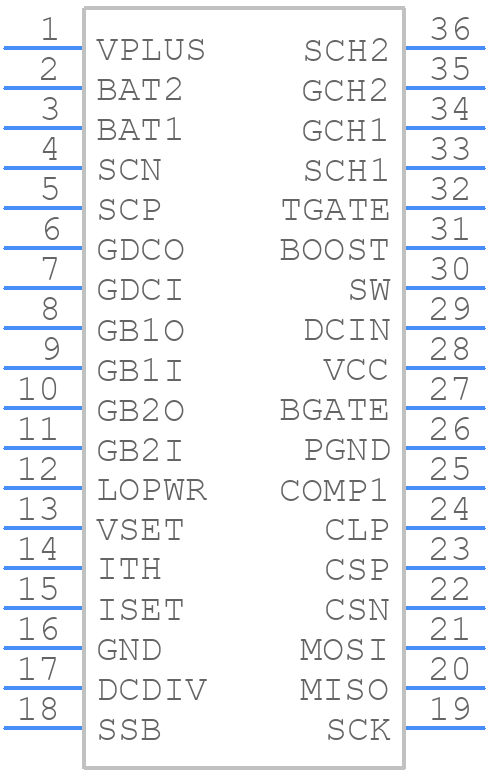

LTC1960CG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1960CG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 36-Lead Plastic SSOP (5.3mm)
click to zoom
3D Models
LTC1960CG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 36-Lead Plastic SSOP (5.3mm)
click to zoom

LTC1960CG#PBF Details

  • Manufacturer Part Number:

    LTC1960CG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1640 (G36)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC1960CG#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1960CG involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended.
  • To optimize the performance of the LTC1960CG, ensure that the input and output capacitors are of high quality and have low ESR, use a low impedance power supply, and minimize the distance between the device and the input/output capacitors. Additionally, ensure that the PCB layout is well-designed and follows good high-frequency design practices.
  • The maximum operating temperature range for the LTC1960CG is -40°C to 125°C. However, the device can be operated at temperatures above 125°C for short periods of time, but this may affect its reliability and lifespan.
  • Yes, the LTC1960CG can be used in a switching power supply design. However, it is essential to ensure that the device is properly bypassed and decoupled to prevent noise and ripple from affecting its performance.
  • To troubleshoot issues with the LTC1960CG, start by checking the power supply voltage, input and output voltages, and the device's operating temperature. Use an oscilloscope to check for noise and ripple on the input and output lines. Also, ensure that the device is properly soldered and that there are no shorts or opens on the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1960CG#PBF Overview

Use the download button to access the LTC1960CG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC19, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
