LTC1968CMS8#TRPBF - Analog Devices

Description: Power Management Specialised - PMIC Prec. uPower RMS to DC converter

Download LTC1968CMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

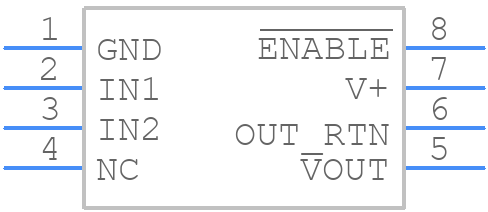

LTC1968CMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC1968CMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (LTC DWG # 05-08-1660)
click to zoom
3D Models
LTC1968CMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (LTC DWG # 05-08-1660)
click to zoom

LTC1968CMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC1968CMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    RMS TO DC CONVERTER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.15%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    15 MHz

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    5.5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC1968CMS8#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1968CMS8 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the performance of the LTC1968CMS8 in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the input, and use a shielded cable for the input signal. Additionally, ensure good power supply decoupling and a solid ground plane.
  • The maximum allowed voltage on the input pins of the LTC1968CMS8 is 6V, which is the absolute maximum rating. However, for normal operation, the input voltage should be within the range of 0V to 5.5V.
  • Yes, the LTC1968CMS8 can be used with a single-supply voltage. However, the input common-mode voltage range is limited to 1.4V to 3.6V when operating from a single supply. A voltage divider or a level-shifter may be required to shift the input signal to the correct common-mode voltage range.
  • The output voltage of the LTC1968CMS8 can be calculated using the formula: VOUT = (VIN x RFB) / (RIN x (1 + RFB/RG)). Where VIN is the input voltage, RFB is the feedback resistor, RIN is the input resistor, and RG is the gain resistor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC1968CMS8#TRPBF Overview

Use the download button to access the LTC1968CMS8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC19, or try a keyword search, such as Analog Special Function Converters
