LTC2000ACY-16#PBF - Analog Devices

Description: DAC 1-CH Current Steering 16-bit 170-Pin BGA Tray

Download LTC2000ACY-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2000ACY-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

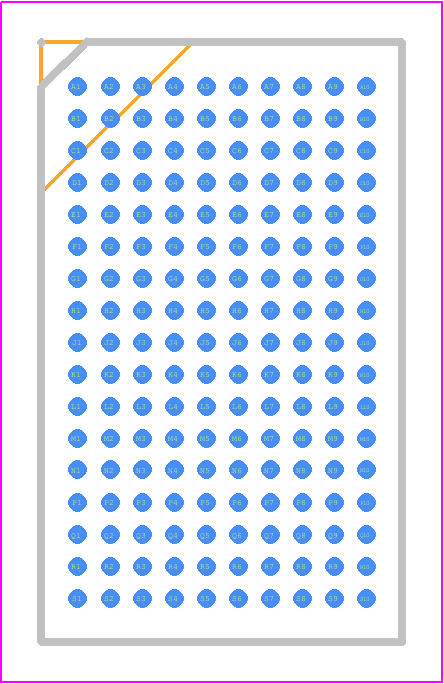

LTC2000ACY-16#PBF - Analog Devices PCB footprint - Other - Other - BGA Package 170-Lead (15.00mm × 9.00mm × 1.54mm)
click to zoom
3D Models
LTC2000ACY-16#PBF - Analog Devices - 3D model - Other - BGA Package 170-Lead (15.00mm × 9.00mm × 1.54mm)
click to zoom

LTC2000ACY-16#PBF Details

  • Manufacturer Part Number:

    LTC2000ACY-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-170

  • Pin Count:

    170

  • Manufacturer Package Code:

    05-08-1890

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A001.A.5.B.2.A

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL, PARALLEL, WORD

  • JESD-30 Code:

    R-PBGA-B170

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    170

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.69 mm

  • Settling Time-Nom (tstl):

    0.0022 µs

  • Supply Voltage-Nom:

    1.86 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

LTC2000ACY-16#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2000ACY-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC2000ACY-16#PBF requires a single 3.3V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The maximum clock frequency for the LTC2000ACY-16#PBF is 100 MHz. However, the device can operate at higher frequencies with reduced performance. It's recommended to consult the datasheet for specific frequency vs. performance trade-offs.
  • The LTC2000ACY-16#PBF can be configured for different input ranges by adjusting the gain settings. The device has a programmable gain amplifier that can be set to different gain settings using the SPI interface. The trade-offs for different gain settings include noise performance, linearity, and input range.
  • The typical power consumption of the LTC2000ACY-16#PBF is around 150 mW. Power consumption can be minimized by reducing the clock frequency, using the power-down mode, and optimizing the gain settings for the specific application.
