LTC2052CS#PBF - Analog Devices

Description: LTC2052CS#PBF, Quad Operational Amplifier 3MHz Rail-Rail, 3 V, 5 V, 9 V, 14-Pin SOIC

Download LTC2052CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

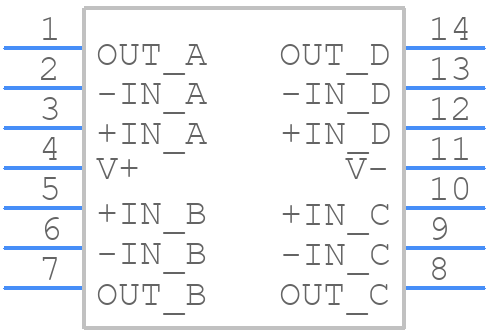

LTC2052CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2052CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S_Package(14-Lead)
click to zoom
3D Models
LTC2052CS#PBF - Analog Devices - 3D model - Small Outline Packages - S_Package(14-Lead)
click to zoom

LTC2052CS#PBF Details

  • Manufacturer Part Number:

    LTC2052CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Input Offset Voltage-Max:

    3 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    2 V/us

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Width:

    3.9 mm

LTC2052CS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2052CS#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • The LTC2052CS#PBF is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use a thermally conductive material for the PCB. Additionally, consider using thermal simulation tools to predict the device's temperature and optimize the design accordingly.
  • When selecting input and output capacitors for the LTC2052CS#PBF, consider the capacitor's equivalent series resistance (ESR), voltage rating, and capacitance value. A low-ESR capacitor with a high voltage rating (e.g., 10uF, 25V) is recommended for the input capacitor, while a capacitor with a moderate ESR and a suitable voltage rating (e.g., 4.7uF, 16V) is suitable for the output capacitor.
  • To troubleshoot common issues with the LTC2052CS#PBF, start by verifying the PCB layout and ensuring that the device is properly soldered. Check for oscillations or instability by monitoring the output voltage with an oscilloscope. If issues persist, review the input and output capacitor selection, and ensure that the device is operating within its specified temperature range. Consult the datasheet and application notes for additional guidance.
  • The LTC2052CS#PBF is a high-performance, low-noise, and low-dropout linear regulator. Compared to other similar devices from Analog Devices Inc, the LTC2052CS#PBF offers a unique combination of low noise (e.g., 10uVrms), low dropout voltage (e.g., 300mV), and high PSRR (e.g., 80dB). It's essential to review the datasheet and compare the specifications of different devices to determine the most suitable option for a particular application.
