LTC2058HMSE#PBF - Analog Devices

Description: Operational Amplifiers - Op Amps 36V, Low Noise Zero-Drift Op Amp

Download LTC2058HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

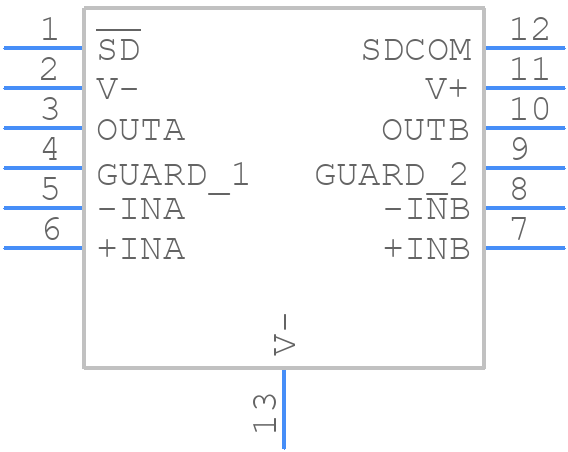

LTC2058HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2058HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC2058HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC2058HMSE#PBF Details

  • Manufacturer Part Number:

    LTC2058HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0045 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    118 dB

  • Common-mode Reject Ratio-Nom:

    150 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5 µV

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1.6 V/us

  • Supply Current-Max:

    3.1 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2500

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3 mm

LTC2058HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2058 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the input and output pins should be routed away from each other to minimize capacitive coupling.
  • The LTC2058 is specified to operate from -40°C to 125°C. To ensure operation within this range, the device should be mounted on a PCB with a thermal pad connected to a heat sink or a copper plane. The device should also be operated within its specified power dissipation limits to prevent overheating.
  • The recommended input common-mode voltage range for the LTC2058 is 0.5V to 4.5V. Operating outside this range may result in reduced accuracy or instability. The input common-mode voltage should be within the power supply rails to ensure proper operation.
  • To reduce noise and EMI in an LTC2058-based design, use a low-noise power supply, add decoupling capacitors close to the device, and use a shielded enclosure. Additionally, minimize the length of the input and output traces, and use a ground plane to reduce radiation. A common-mode choke or ferrite bead can also be used to filter out high-frequency noise.
  • The maximum input voltage that can be applied to the LTC2058 is 5.5V. Exceeding this voltage may result in damage to the device. The input voltage should be limited to the specified range to ensure proper operation and prevent damage.
