LTC2064HDD#PBF - Analog Devices

Description: 2µA Supply Current, Low IB, Zero-Drift Operational Amplifiers

Download LTC2064HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

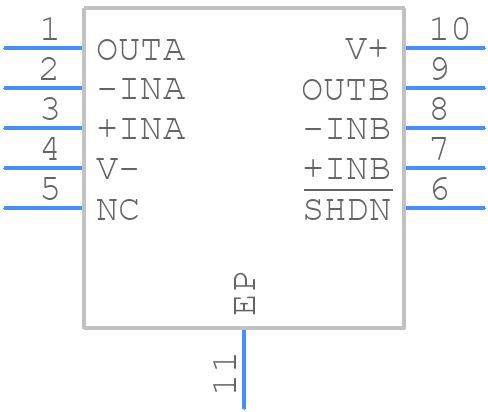

Symbol
LTC2064HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2064HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn pakage dd
click to zoom
3D Models
LTC2064HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - dfn pakage dd
click to zoom

LTC2064HDD#PBF Details

  • Manufacturer Part Number:

    LTC2064HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.0035 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    20

  • Voltage Gain-Min:

    316227.77

  • Wideband:

    NO

  • Width:

    3 mm

LTC2064HDD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2064HDD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and away from noise sources.
  • To ensure the LTC2064HDD#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad, and a heat sink can be attached to the package. Additionally, the ambient temperature should be monitored, and the device should be operated within the specified temperature range of -40°C to 125°C.
  • Potential sources of error in the LTC2064HDD#PBF include offset voltage, gain error, and noise. These can be minimized by using a high-quality voltage reference, ensuring proper PCB layout and grounding, and using filters or averaging techniques to reduce noise. Additionally, the device should be calibrated and trimmed to minimize offset and gain errors.
  • To troubleshoot issues with the LTC2064HDD#PBF, start by verifying the power supply voltage and ensuring it's within the specified range. Check the input and output voltages using an oscilloscope, and verify that the device is properly configured and connected. If oscillations are present, check for layout issues, such as long traces or poor grounding, and ensure that the device is properly decoupled. Consult the datasheet and application notes for troubleshooting guides and techniques.
  • Operating the LTC2064HDD#PBF beyond its specified maximum ratings can result in reduced reliability, permanent damage, or even catastrophic failure. Exceeding the maximum ratings can cause the device to overheat, leading to thermal shutdown or permanent damage. It's essential to ensure that the device is operated within its specified maximum ratings to ensure reliable operation and prevent damage.
