LTC2064HMS8#TRPBF - Analog Devices

Description: Op Amp Dual GP R-R I/O 5.25V 8-Pin MSOP T/R

Download LTC2064HMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

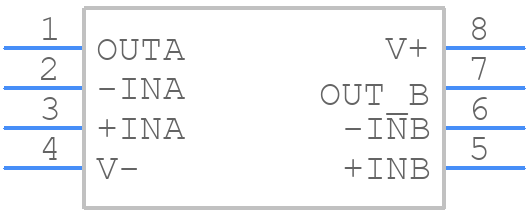

LTC2064HMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2064HMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8
click to zoom
3D Models
LTC2064HMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSOP8
click to zoom

LTC2064HMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC2064HMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.0035 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    20

  • Voltage Gain-Min:

    316227.77

  • Wideband:

    NO

  • Width:

    3 mm

LTC2064HMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2064HMS8#TRPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, place the input and output capacitors close to the IC and use short, direct traces to minimize parasitic inductance.
  • To ensure accurate temperature measurement, make sure to follow proper thermal design practices, such as placing the IC in close proximity to the thermal source, using a thermally conductive material for the PCB, and minimizing thermal gradients. Additionally, calibrate the temperature sensor using a known temperature reference point, and consider using a temperature compensation circuit to account for any non-idealities.
  • The maximum allowed input voltage for the ADC is VCC + 0.3V, where VCC is the supply voltage. Exceeding this voltage can cause damage to the IC. It's recommended to use input voltage limiting resistors or clamping diodes to prevent overvoltage conditions.
  • To minimize EMI and RFI in your design, use proper shielding, grounding, and filtering techniques. Place the IC in a shielded enclosure, use a common-mode choke or ferrite bead on the input lines, and add capacitors to filter out high-frequency noise. Additionally, consider using a spread-spectrum clock or a clock with a low EMI profile.
  • The recommended power-up sequence for the LTC2064HMS8#TRPBF is to power up the VCC supply first, followed by the AVCC supply, and then the digital inputs. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2064HMS8#TRPBF Overview

Use the download button to access the LTC2064HMS8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC20, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
